管帽...
|
|
| 產品名稱：管帽 |
| 產品編號：— |
發布日期：
2009/9/2 |
| 產品產地：— |
產品規格：可根據用戶需求定制 |
| 產品商標：— |
 |
|
|
|
|
|
|
 |
| |
|

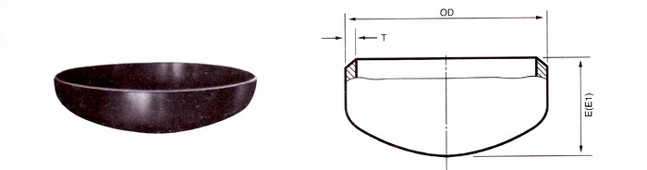

公稱直徑 |
外徑mm |
端面至端面的距離 |
理論重量kg/pcs |
|
DN |
INCH |
OD |
E |
E1 |
5S |
10S |
20S |
40S |
80S |
120S |
|
15 |
1/2 |
18
21.3 |
25 |
- |
0.019
0.022 |
0.024
0.028 |
0.027
0.033 |
0.031
0.037 |
0.042
0.050 |
0.057
0.063 |
|
20 |
3/4 |
25
26.7 |
25 |
- |
0.027
0.029 |
0.033
0.035 |
0.038
0.041 |
0.045
0.048 |
0.060
0.065 |
0.079
0.086 |
|
25 |
1 |
32
33.7 |
38 |
- |
0.049
0.052 |
0.083
0.087 |
0.091
0.093 |
0.101
0.106 |
0.136
0.143 |
0.176
0.182 |
|
32 |
1.1/4 |
38
42.4 |
38 |
- |
0.058
0.065 |
0.099
0.110 |
0.111
0.125 |
0.126
0.141 |
0.173
0.193 |
0.213
0.237 |
|
40 |
1.1/2 |
45
48.3 |
38 |
- |
0.071
0.076 |
0.118
0.127 |
0.138
0.148 |
0.158
0.169 |
0.218
0.234 |
0.294
0.323 |
|
50 |
2 |
57
60.3 |
38 |
44 |
0.094
0.099 |
0.156
0.165 |
0.189
0.20 |
0.221
0.234 |
0.313
0.331 |
0.387
0.426 |
|
65 |
2.1/2 |
76
73.0 |
38 |
51 |
0.167
0.161 |
0.241
0.232 |
0.391
0.312 |
0.409
0.393 |
0.555
0.534 |
0.676
0.634 |
|
80 |
3 |
89 |
51 |
64 |
0.254 |
0.367 |
0.490 |
0.660 |
0.917 |
1.469 |
|
90 |
3.1/2 |
101.6 |
64 |
76 |
0.355 |
0.512 |
0.739 |
0.965 |
1.36 |
1.891 |
|
100 |
4 |
108
114.3 |
64 |
76 |
0.387
0.410 |
0.561
0.594 |
0.810
0.882 |
1.11
1.17 |
1.58
1.67 |
2.04
2.16 |
|
125 |
5 |
133
139.7
141.3 |
76 |
89 |
0.769
0.808
0.817 |
0.945
0.993
1.00 |
1.339
1.421
1.473 |
1.82
1.91
1.93 |
2.65
2.78
2.81 |
3.52
3.70
3.74 |
|
150 |
6 |
159
168.3
165.2 |
89 |
102 |
1.07
1.13
1.11 |
1.31
1.39
1.36 |
1.843
2.00
1.97 |
2.74
2.90
2.85 |
4.22
4.47
4.39 |
5.50
5.82
5.72 |
|
200 |
8 |
219
216.1 |
102 |
127 |
1.76
1.74 |
2.38
2.35 |
4.03
3.98 |
5.19
5.13 |
8.05
7.95 |
11.6
11.5 |
|
250 |
10 |
273
267.4 |
127 |
152 |
3.36
3.29 |
4.14
4.05 |
6.27
6.14 |
9.15
8.96 |
16.3
16.4 |
23.9
23.4 | | | , |
|
|
|
|
|
|
|
|
|
